Met naast 2G nu ook 4G verbinding en

met 4 analoge ingangen

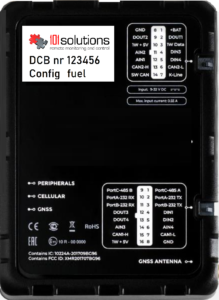

DCB light 4G - (Data Communicatie Box) voor extra I/O en tracking

Digital inputs4 inputs. Voltage range 0 – 30 VDC
Analogue inputs4 inputs. Voltage range 0 – 30 VDC
GPS/GLONASS antennaExternal
GSM antennaInternal
Internal memory8 MB
Power Supply9 - 32 V DC
TemperatureOperating: -20 to +60 °C
Storage: -20 to +45 °C
Battery charging: 0 to +45 °C
Bateery discharging: -20 to +60 °C
Size102 x 74 x 23 mm
Internal batteryLiPo 3.7 V 1050 mAh
Power consumption Operating (battery fully charged)
Normal operation (data sending interval ~15 sec): ~160mA
Peak value: ~260mA

Sleep mode:
All modules disabled: ~6 mA
Modem enables, other modules disabled: ~9 mA
GNSS module enables, other modules disabled: ~22mA
GSMModem: Quectel BG96
Frequency bands @ 2G (GSM) 850/900/1800/1900 MHz
Frequency band2 @ 4G( LTE Cat M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28/B39
Relative humidity5% to 95% Non-condensing
Sim cardOptional available. Standard EU-roaming and multi provider
CertificationsE-mark, CE, RoHS, FCC, IC, WEEE
