Plug & play

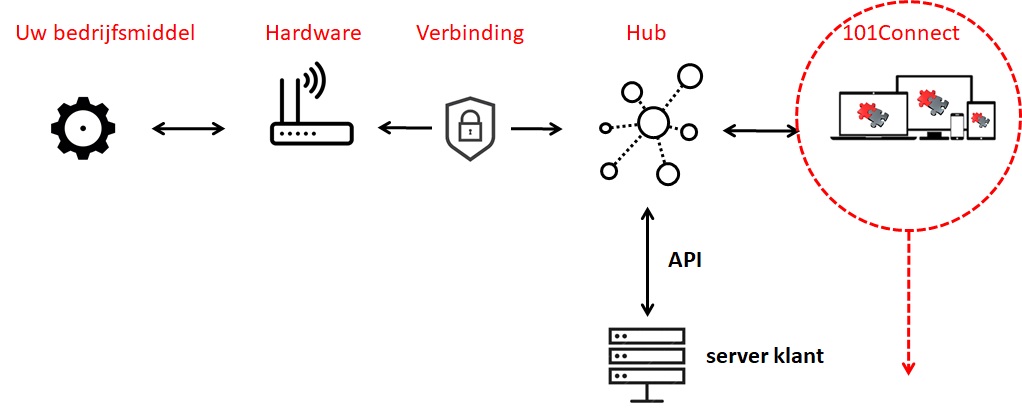

Met de 101Connect kunt u op eenvoudige wijze 24/7 uw machines monitoren.
Wij leveren de 101Connect plug & play, inclusief simkaart. Op basis van het Modbus adressen register of een overzicht met Can bus adressen wordt de 101Connect door ons geconfigureerd. Deze hoeft u alleen maar aan te sluiten.
Vraag naar de mogelijkheden.
Technische specificaties
| System | |
|---|---|
| Memory | 1GB SDRAM 8GB storage |
| Powersupply | 8-25 VDC |
| Energy consumption | 100 mA – 150 mA |
| Interfaces | |
| Ethernet | 1x 10/100M Ethernet |
| Serial Ports | 2x software configurable RS-232/422/485 |
| DC-in | 1x DC-input connector |
| Digital input | 4-CH isolated DI |
| User buttons | 2x buttons |
| User LEDs | 6x LEDs |
| Power button | 1x power button |
| Reset button | 1x reset button |
| CAN bus (optional) | 1x CAN bus 2.0 A/B |
| SD Card (optional) | 1x external T-flash socket |
| Modem / Communication | |
| Technology | GSM, GPRS, EDGE, 3G, HSPA, HSPA+, LTE, GNSS |
| 4G | LTE |
| Max DL / UL speed | 150 Mbps / 50 Mbps |
| 3G | UMTS/HSPA Bands |
| 2G | GSM/GPRS/EDGE |
| GPS | GPS and Glonass |
| Mechanical | |
| Dimensions | 41 mm x 77 mm x 104 mm |
| Weight | 0.4 Kg |
| Mounting | DIN-Rail mounting |
| Environmental | |
| Operational temperature range | -25°C – 70°C |
| Humidity | 10% – 90%, non-condensing |
| Vibration | 5Grms |
| Shock | 50Grms |
| Certification | CE/FCC Class A, according to EN 55032 |
Eigenschappen
| Meets industry standards such as CE/FCC certification (Shock and vibration) |
| Communication by 2G, 3G, 4G, WiFi |
| Extended IO: Ethernet, RS-232/422/485, 4DI, CAN bus (optional) |
| IoT Gateway without fan (fanless) |
| Based on ARM, so energy efficient |
| Compact housing and easy to connect by means of universal plugs |
| Sim card can be easily inserted |
| 6 LEDs for status indications |
| Mount plate for installation on DIN rail |
| Is delivered plug and play with configuration for the controller to be monitored and with (optional) active SIM card |
